Distribution transformers

A distribution transformer steps a medium voltage network down to the low voltage a building, a plant or a process runs on. Ratings run from 100 to 2500 kVA in the standard series.

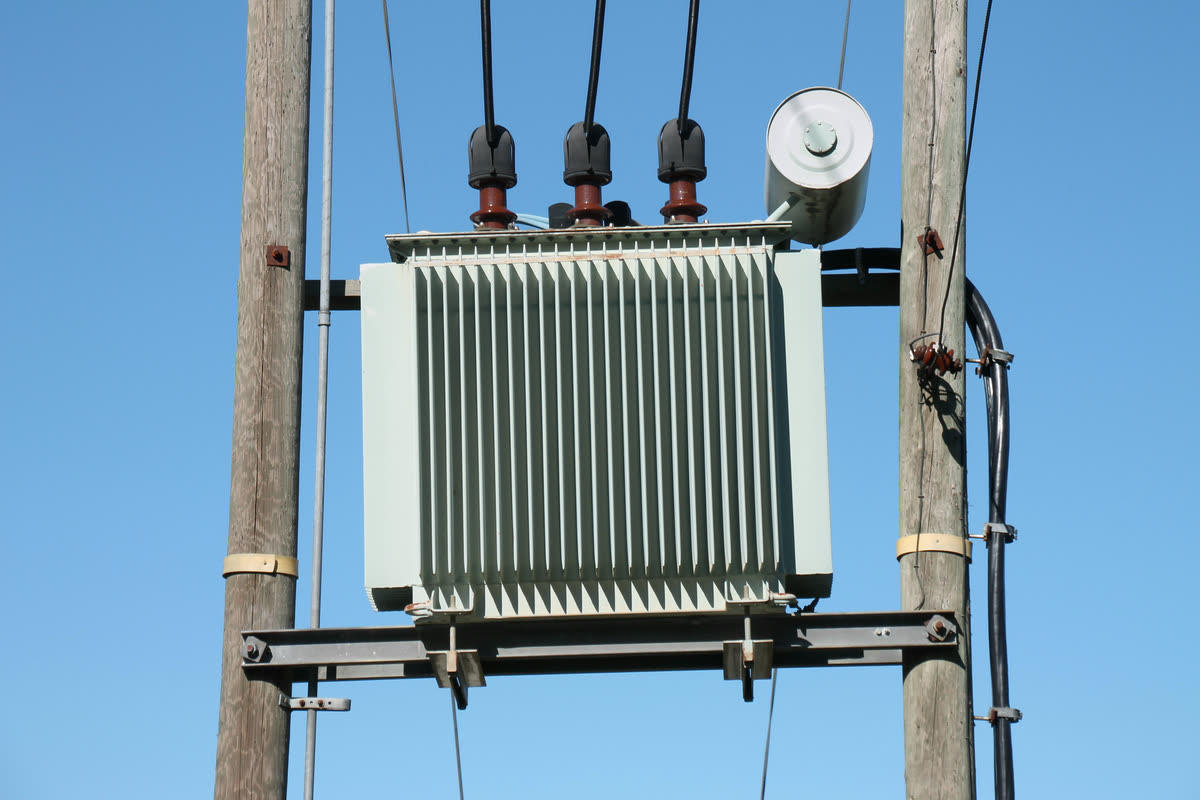

Three phase oil immersed distribution transformer with corrugated cooling fins and three medium voltage bushings, mounted on a two pole structure
Ratings
100 to 2500 kVAother ratings on request
Primary voltage
commonly 6.6 to 33 kVset by the network at the connection point
Secondary voltage
400 V, 415 V or 433 V480 V on 60 Hz systems
Construction
liquid immersed or dry typeset by where the unit stands
Standards
IEC 60076-1, IEC 60076-11 for dry typeIEEE C57.12.00 on North American specifications

A distribution transformer is the last voltage step before the loads. Its ratings follow a standard series, so manufacturers build a known set of designs and offers compare like with like. A rating between two standard values usually costs more and takes longer for no technical gain. The practical decision is which standard value the load sits under.

The voltage pair is not a free choice either. Continental European networks commonly run at 10 or 20 kV and supply 230/400 V, the value IEC 60038 lists for three phase systems. In the UK, 11 kV is the common distribution voltage. One network operator's specification for ground mounted units lists the ratio 11000/433-250 V from 25 to 1000 kVA, a no load secondary chosen, the operator notes, to help provide the nationally declared low voltage. On 60 Hz systems the low voltage is commonly 480 V.

The rated current on the low voltage side follows from the rating and the secondary voltage. That current sizes the incomer, the busbar and the cables, and the ratings table below gives it at 400 and 433 V for every standard step.

What gets specified

ParameterTypical optionsWhat decides it
Rating100 to 2500 kVA in R10 stepsThe diversified load and its planned growth, rounded up to the next step
Primary voltage6.6, 10, 11, 13.8, 20, 22 or 33 kVWhatever the network operator runs at your connection point
Secondary voltage400 V; 433 V no load on many UK specifications; 480 V at 60 HzThe declared supply voltage of the destination market
Vector groupCommonly Dyn11 or Dyn5The neutral the low voltage side must provide, and any unit it will run beside in parallel
ConstructionLiquid immersed or cast resinOutdoors or in a plant room, against inside an occupied building
WindingsCopper or aluminiumMass, price and preference; the loss ceilings are the same for both
LossesTier 2 ceilings of Regulation (EU) No 548/2014, or lower by agreementWhere the unit is placed on the market, and how the owner values lifetime running cost

Ratings from 100 to 2500 kVA

RatingFull load current at 400 VFull load current at 433 VNext step
100 kVA144 A133 ARequest a quote
160 kVA231 A213 ARequest a quote
200 kVA289 A267 ARequest a quote
250 kVA361 A333 ARequest a quote
315 kVA455 A420 ARequest a quote
400 kVA577 A533 ARequest a quote
500 kVA722 A667 ARequest a quote
630 kVA909 A840 ARating page
800 kVA1155 A1067 ARequest a quote
1000 kVA1443 A1333 ARating page
1250 kVA1804 A1667 ARequest a quote
1600 kVA2309 A2133 ARating page
2000 kVA2887 A2667 ARequest a quote
2500 kVA3608 A3333 ARating page

Rated current is S / (√3 × U). Each linked rating carries its own engineering decisions, and any rating without a link is quoted straight from its row.

Applicable standards

StandardWhat it covers
IEC 60076-1The general requirements a unit in this range is designed and routine tested to
IEC 60076-11Takes over for cast resin units, with its own classes for climate, environment and fire
Regulation (EU) No 548/2014, as amendedThe loss ceilings for units placed on the EU market, which also remain law in Great Britain
EN 50708-1-1 and EN 50708-2-1European additional requirements for medium power transformers, in force since EN 50588-1 was withdrawn in 2020
IEEE C57.12.00The general requirements behind North American specifications for liquid immersed units

What a distribution transformer request needs

  1. The voltage pair as the network operator states it, with a 433 V no load secondary where your specification asks for one
  2. The standard step you expect, or the diversified load and the largest motor if the step is still open
  3. Liquid immersed or cast resin, decided by where the unit will stand
  4. The loss level: the Tier 2 ceiling, or a lower figure with the capitalisation values behind it

Specification template

Fill it in on screen or by hand, then upload it with your request.

Questions buyers ask

Should the secondary be 400 V or 433 V?

400 V is the IEC 60038 value for 230/400 V systems. Many UK specifications ask for 433 V at no load instead; one distribution network operator lists its ratio as 11000/433-250 V. In Qatar, Kahramaa's low voltage network runs at 240/415 V. Use the value your network operator or your designer states, because the low voltage board is rated around it.

How much headroom should a rating carry?

Enough for the growth that is actually planned and for the starting behaviour of the largest motor, and no more. An oversized unit carries higher no load losses for its whole life, and those are paid every hour whether the load is there or not.

Is a 33 kV unit covered by the same loss limits?

Not directly. The EU loss tables apply where one winding is at most 24 kV Um. A 33 kV system uses a 36 kV Um primary, which the regulation corrects under a separate table, and the offer states the limit for the configuration quoted.
